PRODUCT DETAILS
Place of Origin:Guangzhou,China
Brand Name:BHF
Model Number:BHF-F308

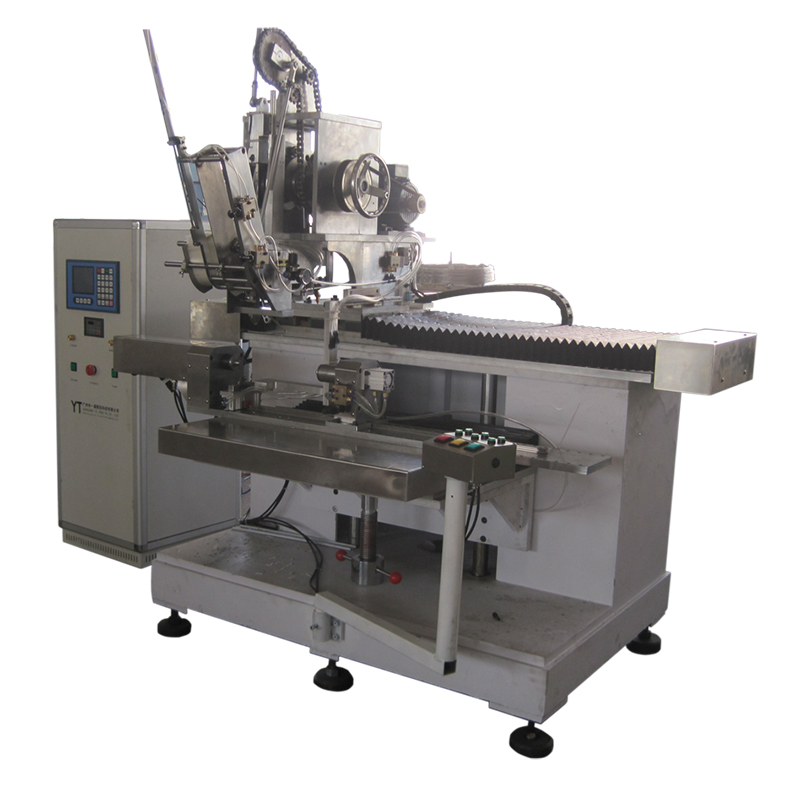

Product Name:3 Axis Filling Machine for Cylinder Brush
Condition:New
PAYMENT&SHIPPING TERMS
MOQ:1 Set
Price:Negotiate
Price Item:CIF,CNF,DDP,EXW,FOB
Payment Terms:D/A,D/P,T/T,WesternUnion,MoneyGram
Packaging Details:Wooden Box
Shipping Terms:By Sea
Port:Guangzhou,China
Delivery Time:Around 30 Days
PRODUCT DESCRIPTION
3 axis filling machine is designed for high volume production of and cylindrical brushes,featuring continuous operations along its 4 stations.The first station allows the operator to take off the finish product and load the virgin blocks while the machine is drilling and filling them in the other two positions.Every time the drilling/filling operation is completed,the machine would rotate to next position automatically.It is ready now to be taken off by the operator and replaced with a new virgin block.
HIGHLIGHTS
(1) Full automatic,no need to stop the machine even changing the virgin blocks.
(2) Ability to produce cylinder brushes with upright filling,easy to change design.
(3) Easy to input data,one hole-finishing and suitable for varied designs.
TECHNICAL DATA
Axis | 3 Axis |
Function | FILLING |
Filling Mode | Staple Mode |
Standard Working Area | X*Y*Z=500mm*250mm*360° |
Diameter of Holes(mm) | 2-6 |
Maximum Filament(mm) | 250 |
Color of Filament | Single Color or Double Color |
Production Speed | 240-360/Min. |
Material of Brush Block | Plastic,Wooden |
Quantity of Design
| Maximum 36000 Holes |
Dimensions of Machine(l*w*h,mm) | 1450*1300*1750 |
Dimensions of Power Box(l*w*h,mm) | 580*660*1500 |
Power Supply | Three Phase 380V |
Power Consumption(W) | 3500 |
Warranty(Year) | 3 |
